M4 PERSONAL è un pacchetto CAD completo 2D/3D gratuito

M4 PERSONAL è utilizzato in tutto il mondo e da molti anni per creare rapidamente disegni CAD o modelli per la stampa 3D per uso privato. Grazie alle versatili funzioni CAD e alla possibilità di elaborare file in formato DWG e DXF, il software si è inoltre affermato anche in molte piccole aziende. Per un uso legalizzato nelle piccole aziende, i disegni, una volta terminati, vengono convertiti con un piccolo compenso, ad esempio nel formato PDF o DXF. Non vengono quindi sostenuti costi per l’acquisto del software, ma solo per l’utilizzo commerciale dei risultati ottenuti.

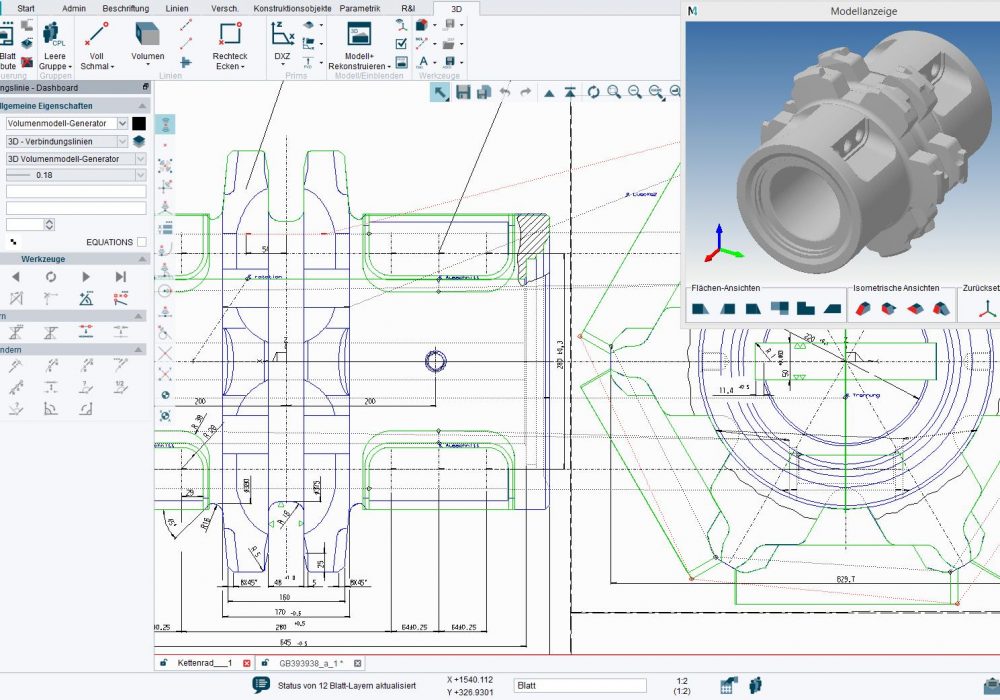

M4 PERSONAL ist das kostenlose leistungsstarke 2D 3D CAD Paket

Suite di prodotti e servizi M4

Software CAD per uso privato e didattico

M4 PERSONAL

M4 PERSONAL viene utilizzato in tutto il mondo per trasformare le idee progettuali in realtà. Utilizzate il software gratuitamente per i vostri progetti privati o per scopo didattico nelle scuole, università e istituti di ricerca. Inizia ora e trasforma le tue idee in realtà!

Per convertire i disegni M4 PERSONAL per uso commerciale

eSERVICES

Salvate i vostri disegni M4 PERSONAL direttamente come DWG, DXF o PDF e beneficiate dei pacchetti di crediti nei nostri eSERVICES. Tutti i disegni convertiti possono essere usati commercialmente e senza restrizioni!

Software CAD per le aziende

M4 DRAFTING

Provate la nostra soluzione CAD per le aziende. Vi permette di realizzare i vostri progetti CAD di qualsiasi dimensione senza alcuna restrizione. Nel pacchetto è incluso un servizio completo comprensivo di hot-line e aggiornamenti.

Suite di prodotti e servizi M4

Software CAD per
uso privato e didattico

M4 PERSONAL

M4 PERSONAL viene utilizzato in tutto il mondo per trasformare le idee progettuali in realtà. Utilizzate il software gratuitamente per i vostri progetti privati o per scopo didattico nelle scuole, università e istituti di ricerca. Inizia ora e trasforma le tue idee in realtà!

Per convertire i disegni
M4 PERSONAL per uso commerciale

eSERVICES

Salvate i vostri disegni M4 PERSONAL direttamente come DWG, DXF o PDF e beneficiate dei pacchetti di crediti nei nostri eSERVICES. Tutti i disegni convertiti possono essere usati commercialmente e senza restrizioni!

Software CAD
per le aziende

M4 DRAFTING

Provate la nostra soluzione CAD per le aziende. Vi permette di realizzare i vostri progetti CAD di qualsiasi dimensione senza alcuna restrizione. Nel pacchetto è incluso un servizio completo comprensivo di hot-line e aggiornamenti.

Vantaggi del software CAD gratuito

Molte interfacce

Possibilità di aprire e modificare i disegni nei formati più comuni (ad es. DWG o DXF) e convertirli tramite eSERVICES. Sono disponibili anche formati 3D.

Standardizzazione

Sono supportate tutte le unità e le dimensioni comuni internazionali. Anche gli stili delle linee ed i template sono personalizzabili.

Scalabile

Con M4 PERSONAL potete avviare direttamente i vostri progetti. Se le vostre esigenze aumentano, potete sempre passare al pacchetto M4 DRAFTING per le aziende.

Video Tutorial

Per aiutarvi ad iniziare a disegnare con M4 PERSONAL, carichiamo regolarmente nuovi video tutorial sul nostro Canale Youtube. I tutorial coprono argomenti che vanno dalla semplice creazione di disegni 2D alla modellazione 3D.

Centro assistenza

Dietro il nostro Help Center c’è un Knowledge Database (KDB), che vi offre suggerimenti per le soluzioni alle vostre domande. E’ possibile inoltre, inserire sulla pagina dell’help desk la vostra domanda personale, questo aiuterà il nostro KDB a crescere e a sua volta aiuterà altri utenti.

Documentazione

Un software CAD professionale comprende anche una documentazione completa che accompagna l’utente dalla prima linea alla progettazione completa e gli fornisce sempre la giusta consulenza. Con il software forniamo la documentazione M4 nella sua interezza, in modo che anche voi possiate accedere alle informazioni di cui avete bisogno.

I nostri prodotti sono in uso in tutto il mondo con oltre 250.000 licenze

Funzioni CAD e moduli di M4 PERSONAL

Come software CAD 2D 3D professionale, M4 PERSONAL offre un’elevata varietà di funzionalità. L’attenzione è sempre rivolta alla dinamica, all’integrazione, alla strutturazione e all’automazione. Qui di seguito trovate una piccola selezione della nostra gamma di funzioni.

M4 PERSONAL

2D Drafting

Modellazione 3D

Parametrico

Sheet Metal Design

Quote, annotazoni e tabelle

SMART Drafting Tool

SMART Edit

Strumento per la Traduzione di Testi

Simboli per Diagrammi

Pallonatura ed Elenco Parti

CloudConnect

Interfacce DXF/DWG

CSG eServices

DXF Esportare

PDF Esportare

3D Esportare

Plot-Service

Tutorials

Documentazione

Help Center

Interfacce DXF/DWG

DXF-DWG-Schnittstelle

L’interfaccia DXF/DWG fornita con M4 PERSONAL consente di importare e modificare i disegni 2D esistenti. Se avete bisogno di creare file DXF dai disegni M4 PERSONAL (con estensione SHE) per uso commerciale, è possibile convertire i disegni sul portale eSERVICES con un piccolo contributo. Le Università o altre istituzioni educative hanno il diritto di utilizzare gratuitamente il software di conversione richiedendo crediti gratuiti sul loro conto eSERVICES.

Interfaccia utente personalizzabile

Anpassbare-Menüs

Gli utenti del software CAD gratuito  possono personalizzare completamente tutti i menù disponibili. I menù a tendina e la dashboard possono essere completamente adattati alle esigenze di ogni utente.

Strumento SMART Drafting

SMART-Drafting-Tool

Il software gratuito M4 PERSONAL CAD include uno strumento intelligente Smart Drafting capace di generare geometria in modo semplice. Lo strumento crea linee di costruzione automatiche, dedotte tra i punti creati, e le visualizza in modo dinamico al passaggio del cursore all’interno dell’area di disegno. Gli utenti possono agganciarsi automaticamente agli snap sui punti esistenti, determinare la lunghezza del passo della griglia e gli angoli per i punti successivi, determinare angoli incrementali rispetto all’ultima riga e estendere facilmente la geometria esistente. I campi con le informazioni sensibili al contesto visualizzano dinamicamente la lunghezza del segmento, l’angolo o le informazioni del raggio quando gli utenti disegnano la loro geometria.

SMART Edit

SMART-Edit

M4 PERSONAL include lo strumento SMART Edit per la modifica di disegni in modo dinamico, noto anche come “parametrico su richiesta.” Lo strumento consente di modificare qualsiasi disegno direttamente selezionando e trascinando le linee, o immettendo valori precisi per dimensioni e posizione degli elementi geometrici il cui effetto cambia in modo dinamico. In alternativa, è possibile trascinare o modificare le quote esistenti per creare le modifiche geometriche corrette. SMART Edit deduce il vostro intento dalla geometria nel suo complesso, prendendo in considerazione le relazioni tra gli elementi selezionati, e dando agli utenti un indicatore visivo di come un cambiamento influenzerà la loro geometria.

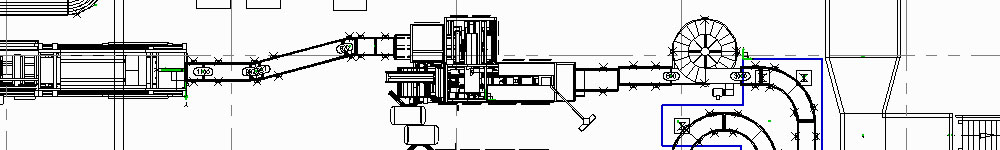

2D Drafting

2D-Zeichnungserstellung

A differenza di altri sistemi CAD gratuiti o economici, M4 PERSONAL è una suite completamente funzionale MCAD, con ampi strumenti intelligenti e funzionalità 2D, tra cui la linea dinamica e strumenti per la creazione della geometria, linee di costruzione, griglie, strumenti di testo, collegamenti ipertestuali, una struttura ad albero per il raggruppamento logico della geometria, la gestione dei livelli, la quotatura flessibile, e la possibilità di modificare le unità di misura del disegno dal sistema metrico a quello imperiale.

Modellazione 3D

3D-Modellierung

M4 PERSONAL contiene funzioni base 3D, che permettono agli utenti di creare rapidamente modelli 3D partendo da disegni 2D – noto anche come ” modellazione basata su fogli”. Questo semplice metodo è stato sviluppato per i progettisti che vogliono conoscere il mondo 3D, rendendolo accessibile anche a persone che non hanno conoscenza di modellazione 3D. Il software fornisce inoltre un visualizzatore integrato per la visualizzazione del modello 3D.

Parametrico

Parametrik

Il modulo Parametrico (geometria variazionale)  è un modulo incluso in M4 PERSONAL, e offre le funzionalità necessarie per parametrizzare disegni 2D e creare rapidamente varianti di progetto, nonché automatizzare processi manuali di progettazione, fare simulazioni e processi di test.

Integrazione di Immagini Raster

Integration-von-Rasterdaten

M4 PERSONAL contiene anche il modulo Raster per l’integrazione, la modifica e il salvataggio di immagini a colori o in bianco e nero (tra cui la scansione dei disegni fatti a mano) in progetti nuovi o esistenti. Il software supporta immagini raster nei seguenti formati: JPG, PNG, BMP e TIF.

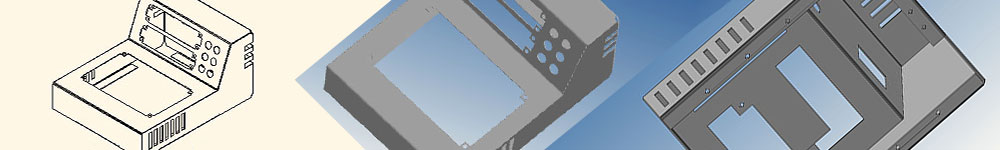

Sviluppo Lamiere

Blechabwicklung

Il modulo Sviluppo Lamiere (SMD) incluso nel pacchetto CAD gratuito si basa su disegno 2D M4 e modelli 3D. Partendo dal 2D o dal 3D, gli utenti possono modificare un modello sviluppato utilizzando i potenti strumenti forniti, ripiegare poi il modello per garantire che la soluzione finale sia esattamente ciò che è necessario. Funzioni di lamiera, quali flange, forme, scarichi e punzoni, possono essere aggiunte in 2D, in modo manuale, o come impostazioni predefinite. Un potente strumento di tolleranza sulle piegature permette di correggere la geometria o di specificare il proprio algoritmo.

Pallonatura ed Elenco Parti

Teiledaten-und-Stücklisten

Il programma CAD 2D/3D gratuito M4 PERSONAL consente agli utenti di aggiungere attributi agli elementi sul disegno, compresi i numeri delle parti, il numero del palloncino e gli attributi definiti dall’utente. Questi possono poi essere inseriti negli elenchi delle parti generati automaticamente, essere poi posizionati sul disegno o esportati.

FAQ: Le vostre domande frequenti e le nostre risposte

1. M4 PERSONAL Installation Guide

We deliver M4 PERSONAL always with an installation guide. You can download it as a PDF document in the download area:
https://www.cad-schroer.com/fileadmin/Download/datasheet/MEDUSA4-PERSONAL-v7-0-Installation-Guide.pdf

2. Supported languages

M4 PERSONAL can be installed in English, German, French or Italian.

The documentation and online help are available from CAD Schroer in German and English.

3. Installation directory on Windows 10

Choose for the M4 PERSONAL installation folder a path name which does not contains blank spaces or special characters, this is why the default installation path cannot be (C:\Program Files).

4. Installation won’t start, aborted after extraction or is taking a long time

The installation can be aborted by several reasons.

1. The installation of M4 PERSONAL is executed by a user without administrator rights

If this is the case, there may be problems during installation. In this case, cancel the installation and ask the administrator to run the installation again.

2. The temporary directory does not exist or is named incorrectly

Make sure that the directory C:\temp exists and is writable.

If the extraction process stops after reaching 100 percent and the DOS error message “The system cannot find the specified path” appears, check whether the temporary area has a DOS-compliant name. Please check under “Start > Settings > Control Panel > System” in the tab “Advanced” on the item “Environment Variables” whether the variables “TMP” or “TEMP” do not contain special characters.

3. Blocking by the Windows firewall or the virus scanner

Unfortunately, some virus scanners cause problems when downloading, installing or running M4 PERSONAL, because the latest virus scanners do not know some M4 PERSONAL files. As these are unknown, their status is considered potentially dangerous and the virus scanner interrupts the download / installation / execution.

We assure you that M4 PERSONAL does not contain any viruses or trojans!

Please let us know which M4 PERSONAL files are classified as dangerous and which virus scanner you are using. We can then contact the software vendor so that this incorrect classification can be corrected at the next update of your virus scanner.

You can configure the Windows firewall under Control Panel > Windows firewall > Exceptions (for DRAFT.EXE and MX.EXE) or configure the firewall in such a way that it does not prevent the execution in principle, but requests its execution.

4. Broser path configured incorrectly

If you specify Firefox as browser and the path there is “C:\Programs\Mozilla Firefox\firefox.exe”
is enclosed (quoted) with ” then errors can occur. Please always use paths without ” … ” must be specified.

5. Windows security warning during installation

When executing the M4 PERSONAL installation file, Windows may display the security warning “Do you want to run or save this file?”

This dialog appears automatically because the M4 PERSONAL installation file does not contain a Microsoft signature. Click on “Run” to start the installation process.

6. Supported operating systems and hardware

Information about the currently supported operating systems and hardware can be found under:
https://www.cad-schroer.com/fileadmin/Download/datasheet/M4-PERSONAL-System-Supported-Configurations_en.pdf

1. Determining Your Computer’s Physical Address (MAC address)

Your computer’s Physical Address, also known as “MAC address” or “Ethernet address” can be determined by using the command prompt.

Determine Windows Physical Address Automatically:
Alternatively, use the program CSG-HostID.exe to automatically determine your physical address.

Open the Command Prompt:
Windows 10: On the desktop press the Windows key and the X (Windows+X) key together. Choose Command Prompt from the Power User Menu.

Determine Windows Physical Address:
At the prompt type “getmac /v” or “ipconfig /all”.

Video Tutorial

For Your Information: You must provide a valid physical address in order for the software to install and run on your machine. We only use this address to issue a software license file (keyfile), which allows the downloaded software to work and is locked to your specific machine.

2. Multiple Physical Addresses (MAC Addresses)

If you have several network cards you will also have several physical (MAC) addresses. If you use the “getmac/v” or “ipconfig -all” command, you computer will these addresses. In order to determine which is the correct address for MEDUSA4 Personal licensing, please use the physical address of your local area conn.

For a manual request of the license file, the physical address of the network adapter which is integrated into the computer (no USB adapter) and always active should be selected.

3. Difference between the freeware M44 Personal of the commercial software M4 DRAFTING

M4 Personal offers most of the functionality of the professional M4 version. The following tools are available:

  • 2D Drafting (Basic)
  • 2D Symbols, creation and und editing
  • 2D Parametric Symbols, creation and und editing
  • Smart Drafting
  • 3D Drafting (Basic)
  • Sheet Metal Design
  • Import of AutoCAD® DXF/DWG files (Export in CSG eSERVICES)
  • Raster files, loading and modifying

M4 Personal is delivered with the documentation of the full version. Due to the limited range of functions, some tools are not available.

M4 Personal has its own license file format. License servers are not supported. When you start M4 Personal for the first time, you have to apply for a license, you will then receive a free license file.
The internal format of M4 Personal drawing files (*.she) and model files (*.mod) is different from the format of the professional version.

The commercial use of plots, PDF files, etc. created with M4 Personal is not allowed, for this reason a watermark is added to each plot.

To use drawings created with M4 Personalcommercially, CAD Schroer provides various conversion services in the CSG eSERVICES:

  • Plotting drawings in large formats (A0, A1, A2)
  • Converting drawings to PDF or DXF format
  • Converting drawings to SHE format of the MEDUSA4 professional version
  • Converting models to STL format

Registration in the CSG eSERVICES is free of charge, the plot and conversion services will be charged.

4. Replace license manually

Open a Windows Explorer window and change to the directory \medsys\med\license. You will find your license here with the file name csglmd.lic . If you want to update your new license, rename the new license to csglmd.lic and copy it into the named directory. Overwrite the existing license or rename it before copying.

5. Annual update of license and software

Each M4 PERSONAL license is valid for one year. After that, the license can simply be renewed for another year in the software.

We limit the license usage for several reasons. We publish a new version of M4 PERSONAL almost every year. The license update allows users to upgrade to the new version. We also sometimes change the functions to meet the requirements of our users and adjust them using the new licenses.

6. Does the M4 PERSONAL license cost me anything?

The M4 PERSONAL software as well as the M4 PERSONAL license are completely free of charge and can be downloaded via the CAD Schroer website https://www.cad-schroer.com/m4personal or via the eSERVICES portal https://eservice.cad-schroer.com/com/. Licenses are valid for 12 months and can be extended free of charge.

Only the use of designs for commercial purposes incurs a conversion charge. Read more about our Pay per Result principle in this article:
https://www.cad-schroer.com/news/articles/the-pay-per-result-principle/

7. Applying for a license

M4 PERSONAL can only be used on PCs with a correctly installed network card.

If you enter the command ipconfig /all or < installation directory >\medsys\med\license\lmutil lmhostid and your machine returns the results 00-00-00-00-00-00 or FF-FF-FF-FF-FF-FF, then this means that your computer does not have a network card installed, or that the card was not properly installed.

A Host ID in the format of 00-53-45-00-00-00 is also invalid, as it is not the physical address of your network card, and M4 PERSONAL will not run in this environment.

8. Update to a new M4 PERSONAL Version

If you want to use the newest version of M4 PERSONAL you need to download the current version and update the license. The old licensekey wont work with the newest version of M4 PERSONAL.

9. What’s a Physical Address (MAC Address)?

A MAC address (Media Access Control Adress, also known as Ethernet ID or Physical Address for Microsoft) is your network adaptor’s unique hardware address, which identifies your machine on a network.

It merely refers to your network adaptor and does not contain any personal information. We need this address to create your M4 PERSONAL license file, which will only run on your machine, preventing illegal copying and misuse of the software.

To find out your MAC address, open a command line and type: “getmac/v” or “ipconfig -all”

10. No license received

1. You do not have an active Internet connection or your firewall is blocking the contact to the license server. Then M4 PERSONAL cannot automatically obtain a license from the CAD Schroer servers.

In this case, use the online form to request a license: https://www.cad-schroer.com/medusa4-pl-license/
Fill out the form and download the license to your PC. Select the license file in the licensing dialog.

2. You do not have an active network card and the licensing mechanism cannot identify a valid physical address (MAC address). In this case, activate your network card and restart M4 PERSONAL.

11. Renew Existing License

Your M4 PERSONAL license is valid for 12 months. When it’s expired, simply renew it in the software or visit https://www.cad-schroer.com/tech-support/medusa4-personal-license/ to renew your license for another 12 months.

1. Remove watermark from printed page

Each M4 PERSONAL printout includes a watermark that informs the users that for commercial use, drawings must be converted in the CSG eSERVICES.

The conversion of the drawing into PDF, DXF or DWG format can also be done via the dialogue “File > eSERVICES conversion”. This requires the purchase of a conversion contingent in the CSG eSERVICES.

The conversion can also be done directly in the CSG eSERVICES.

There is no watermark in the converted files, which means that they can also be used commercially.

2. Print in colour from M4 PERSONAL

Both plotter drivers available in M4 PERSONAL are set up to print in monochrome by default. You can change one of these to allow you to do colour printing.

To do so, select “File > Options > Administrator” and enter the password “admin”. Then select “File > Options > Plotter configuration”.

The dialog presented lists all available plotter drivers. Select the “qtplot” plotter driver and click the “Edit Description” button.

In the file presented, change the text so that you comment out (add a “–“ to the line defining) the black and white printing options, and remove the comment marks from the colour printing options, then save the file:

Change:

———————————————————————————
— Criterion for selecting the pen is defined for black and white printout
———————————————————————————
lgc 1 col 0 0 0
softpens on
———————————————————————————
— Criterion for selecting the pen for color printout use one of the next
section
———————————————————————————
— workstation background white

— lgc off
— softpens on
———————————————————————————-
— for manual pen assignment / definition please take a look at the
plotting guide
———————————————————————————-

To:

———————————————————————————
— Criterion for selecting the pen is defined for black and white printout
———————————————————————————
–lgc 1 col 0 0 0
–softpens on
———————————————————————————
— Criterion for selecting the pen for color printout use one of the next
section
———————————————————————————
— workstation background white

lgc off
softpens on
———————————————————————————-
— for manual pen assignment / definition please take a look at the
plotting guide
———————————————————————————-

3. Print from M4 PERSONAL

To print your M4 PERSONAL design, select “File > Print”.

Select a plotter driver in the “Available printers” section of the Print dialog.

You can use qtplot or the standard winplot driver. Both are set up by default to print in monochrome. To change this, see the FAQ on colour printing.

Click OK. You will now be presented with the familiar Print dialog which allows you to choose any printer on your network and begin printing.

1. Uninstalling M4 PERSONAL

To uninstall M4 PERSONAL under Windows®, click on the Start button and select “All Programs > M4 PERSONAL > uninstall MEDUSA4 Personal” . This will launch the uninstall wizard, which allows you to uninstall all components of the application.

Alternatively, use the “Add or Remove Programs” option in the Control Panel to remove the software.

1. Notifications about new M4 PERSONAL versions

We will notify you about the release of a new M4 PERSONAL version via our newsletter, Facebook page or Twitter. Subscribe to the right channel to stay up to date.

Newsletter: https://www.cad-schroer.com/news-events/newsletter/
Facebook: https://www.facebook.com/CADSchroerGroup

2. M4 PERSONAL Download

You can download the latest version of M4 PERSONAL from our website:
https://www.cad-schroer.com/products/m4-personal/download/

Also check the system requirements:
https://www.cad-schroer.com/fileadmin/Download/datasheet/M4-PERSONAL-System-Supported-Configurations_en.pdf

3. Can I have a CD/DVD of the M4 PERSONAL software?

Because M4 PERSONAL is a free software product, it is only available as a download. You can access it at any time at https://www.cad-schroer.com/products/m4-personal/download/ .

1. Activate the administrator mode and change the administrator password

To switch to administrator mode, the password “admin” must first be entered and confirmed under “File > Options > Administrator”.
The admin password can then be changed under “File > Options > Administrator”.

2. PDF/DXF conversion for school and college students

High school and university students can receive free voucher codes to convert their drawings into PDF or DXF format. The codes can be requested from our website. https://www.cad-schroer.com/company/education/request-dxf-conversion-credits/

3. Convert 3D models to STL

In CSG eSERVICES ( https://eservice.cad-schroer.com/com/ ), MOD files can be converted to STL format for a small fee.
M4 PERSONAL does not offer its own STL export. Models are saved in MOD format.

4. MEDConfig in M4 PERSONAL

M4 PERSONAL is a compact 2D/3D package designed to meet the needs of home users and small-sized companies. Individual configurations are not possible in M4 PERSONAL and therefore MEDconfic cannot be run in this software.

Individual customizations can only be realized in the commercial packages of M4.

5. Publishing M4 PERSONAL drawings online

M4 PERSONAL drawings may only be publised online if there is no commercial context or monetary gain involved.

If you want to publish a drawing for commercial use (e.g. to illustrate a commercial website or a commercial service you provide, or to sell a drawing), you must first convert it for commercial use at CSG eSERVICES ( https://eservice.cad-schroer.com/com/ )

6. Using other QT Libraries

QT libraries are used to define the user interface in M4 PERSONAL. The libraries that should be used by the software are located in the directory “<installation directory>/medsys/med/share/”. If you receive an error message relating to a QT DLL when starting the system, then you probably have other QT DLLs in the SYSTEM32 directory. You will need to redefine the PATH environment variable to pick up the /medsys/med/share/ folder before the SYSTEM32 directory.

7. Change background colour of the sheet

To change the background colour of your M4 PERSONAL sheet you need to switch to Administrator under “File > Options > Administrator” and entering the password “admin“. Change the background colour in the menu under “File > Options > Administrator”.

8. Export sheets to DWG, DXF or PDF

The DXF, DWG and PDF export can be done in the software via File > eSERVICES Conversion. You need a conversion contingent in the eSERVICES. A tutorial about DXF and DWG export can be found here https://www.cad-schroer.com/lessons/9-pdf-dxf-dwg-export/

You can also convert the files in the CSG eSERVICES (https://eservice.cad-schroer.com/com/).

All files can also be used commercially after conversion.

9. Error message during DWG/DXF import

The message “ERROR while importing file: No output written by converter program for: file.dwg” will always appear if M4 PERSONAL has a problem with importing the DWG/DXF file.

In this case, please open the file “Login.bat” under “<installation directory>/master_project/” with the text editor and enter the following command in a free line:

setenv CADCONVERT_FIXERRORS=1

Then save the “Login.bat” file, restart M4 PERSONAL and re-import the DWG/DXF file. Now M4 PERSONAL automatically fixes the errors in the DWG/DXF file and imports the drawing.

10. MM4 PERSONAL video tutorials and documentation

For a quick start with M4 PERSONAL, the following tutorials are available: https://www.cad-schroer.com/courses/m4-personal/

You can find the complete documentation in the software. To open it, click the (?) question mark icon in the upper right corner of the software.

If you have activated a function, simply click the F1 button and the documentation will be opened for you at the relevant point.

11. How do I launch M4 PERSONAL?

After installing your license key file, there are 3 ways you can launch M4 PERSONAL (Assumption: M4 PERSONAL is installed C:\M4_PERSONAL\):

1) From the Windows Taskbar click
Start > All Programs > M4 PERSONAL > M4 PERSONAL

2) Create a new shortcut on your Desktop and point it to
C:\M4_PERSONAL\master_project\startmedusa.bat

3) Enter in Explorer:
C:\M4_PERSONAL\master_project\startmedusa.bat

12. Use symbols and standard parts

In M4 PERSONAL, you can create symbols from individual parts of your drawing and then load them on other drawings as needed.

Save Symbol
To save a selected geometry as a symbol, click “Start > Save named symbol” (under Symbol + Catalog). Then select a name and save directory for the symbol. At the end, the reference point must be selected in to save the symbol permanently. The symbol will then be saved.

Load Symbol
The symbol directory can then be added to the symbol list in the symbol manager under “Start > Load named symbol” (under Symbol + Catalog). In this dialog you will also get a preview of the existing symbols. The individual symbols can then also be comfortably loaded.

1. The online documentation and/or help won’t launch

You can set the browser path manually, by doing the following:

In the “\master_project” folder there is a file called “login.bat”. Use an editor of your choice to add the following line to the document, pointing it to the installation location of your Internet
Explorer:

E.g.

set BROWSER=”C:\Program Files\Internet Explorer\Iexplore.exe”

2. Directory for PDF documentation

MEDUSA4 Personal comes with detailed documentation in the PDF format. It can be opened by clicking on the Help icon in the upper left corner of the software or by pressing F1 (if a function is active, the documentation is opened in the right position).

You can also open the documentation directly from the directory:
<Installation directory>\meddoc\doc\english
